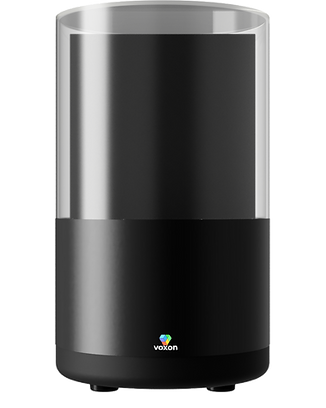

Voxon VX2
$6,800.00Price
top of page
USD
Excludes Shipping, Local Taxes & Import Duties. Estimated lead time 6-8 weeks.
The Voxon VX2 is the most advanced 3D volumetric display available, capable of rendering true three-dimensional holograms that float in mid-air, visible from any angle without the need for glasses or headsets. With its precision-engineered dual high-speed LED array, rotating at 900 RPM, and a bespoke volumetric graphics engine, the VX2 creates dynamic, colorful, and interactive 3D visuals that can be seen clearly from every direction. Simply connect the VX2 to any Windows PC and download the Voxon software installer to get started.
VX2 in 2D mode

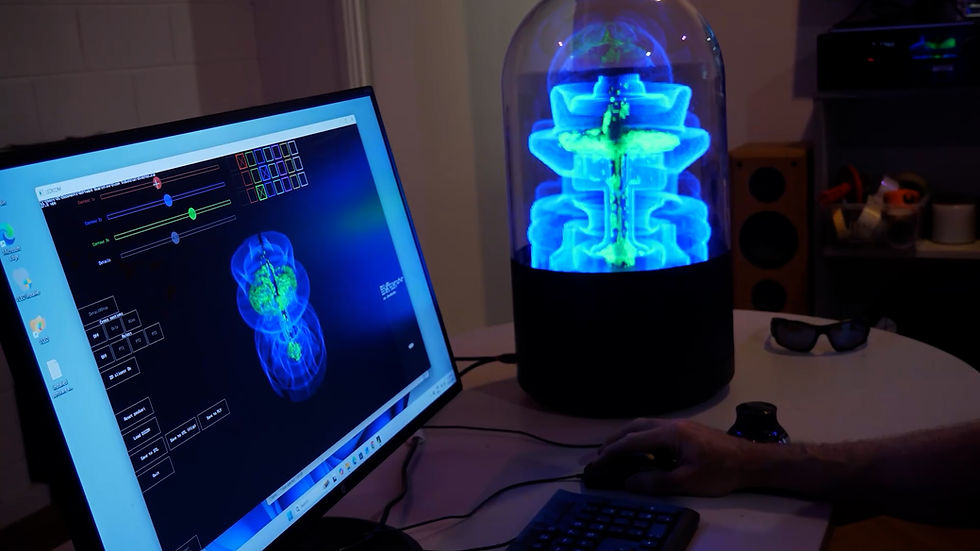

VX2 in 3D mode
During each complete rotation, Voxon's high-speed graphics engine converts each 3D geometric scene into a cylindrical array of volume slices. These slices are transmitted to, and displayed on the VLED matrix at an astonishing 7,400 frames per second. The rapid rotation, coupled with the high image refresh rate, enables the device to render colorful and detailed interactive 3D scenes.
Whats included in the box
Voxon VX2 Volumetric Display
SpaceMouse® (wired USB 3D input device)
160W Power Supply
Power Cable
USB 3.0 Type-B Cable
Quick-start guide
Microfibre cloth
VX2 Product Features
Large interactive 3D Display volume
Super-bright VLED display technology
Create interactive games and apps
No 3D glasses required
Connects to standard PC
View 3D files and animations
Supports popular 3D file formats
Includes Unity Plugin and C/C++ SDK
Automatic software updates
VX2 SDK Features
3D function calls using 64-bit Windows DLL
Unity Plugin
SDK with numerous example programs
Simulator mode
Supported Media
OBJ, STL, PLY, KV6, ZIP animations
Optimized batch voxel function
Texture-mapped polygons
Playback of FBX, GLTF and GLB with sound
Included Apps
3D Animation and File Viewer
Audio Visualizer
Aquarium Demo
3D Rendering Specifications
Display Volume: 256mm diameter x 256mm tall
Volumetric Refresh: 30 vols / sec
Voxels per Volume: 8 million
Colour: RGB VLED Matrix
Axial Occlusion: 12mm diameter
Electrical Characteristics
Power Requirement: 36VDC, 120W
Average power usage: 65W Typ
Input: 1 USB 3.0 Type-B
Output: 2 USB 2.0 Type-A
Product Size & Weight
Diameter: 300mm
Height: 500mm
Weight: 12kg
PC Requirements
Windows PC / Laptop
Operating System: Windows 10/11
Interface: USB 3.0 port
CPU: x86-64 w/AVX2 (i.e. Intel: 4th+ gen, AMD: Ryzen+)
On / Off Switch
36 VDC Power
USB 2.0 output
for peripherals
USB 3.0 Input
Outer enclosure
VLED Matrix
Electronics
& Drive system
